Thread Mount Feedthrough Filters

Metric ThreadsImperial Thread

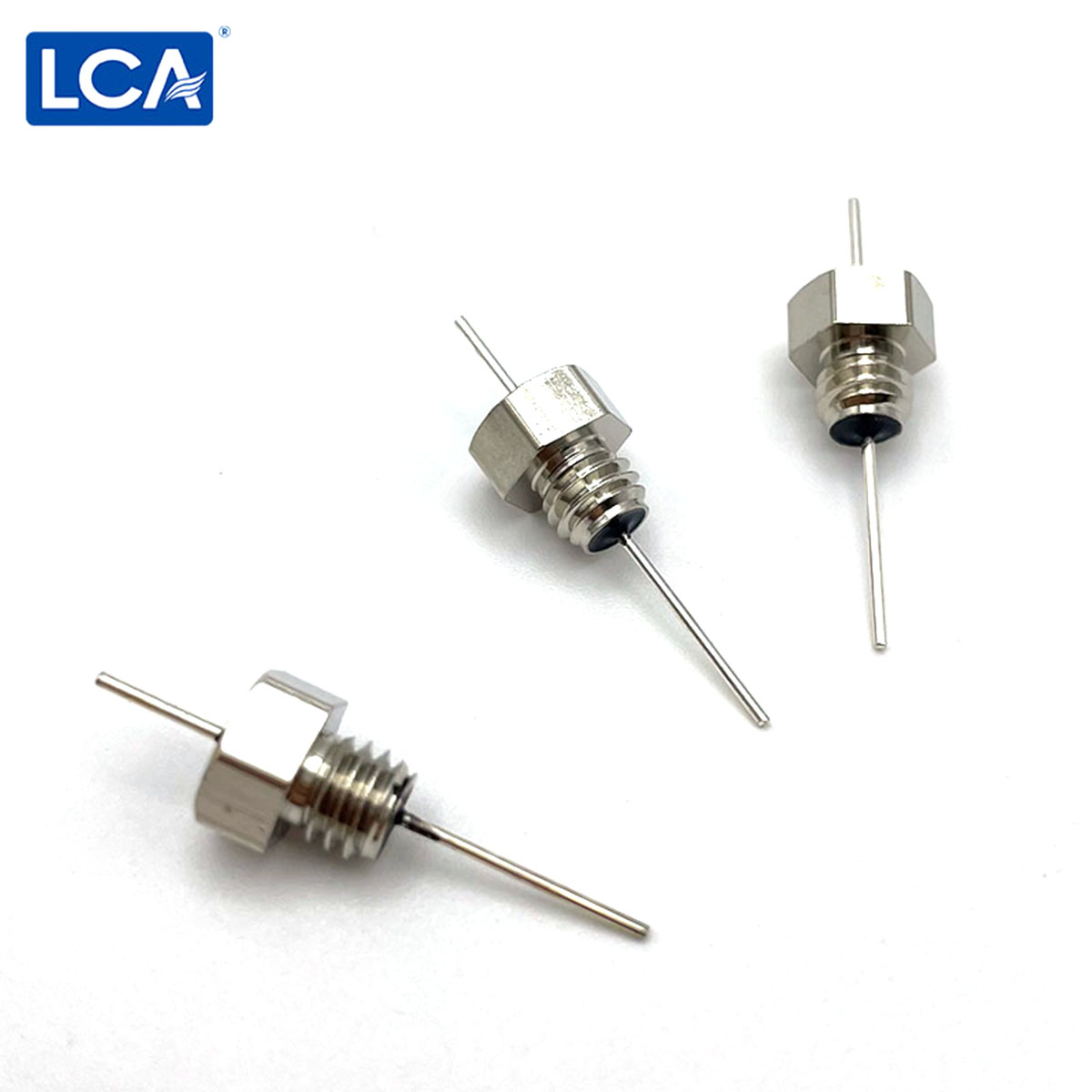

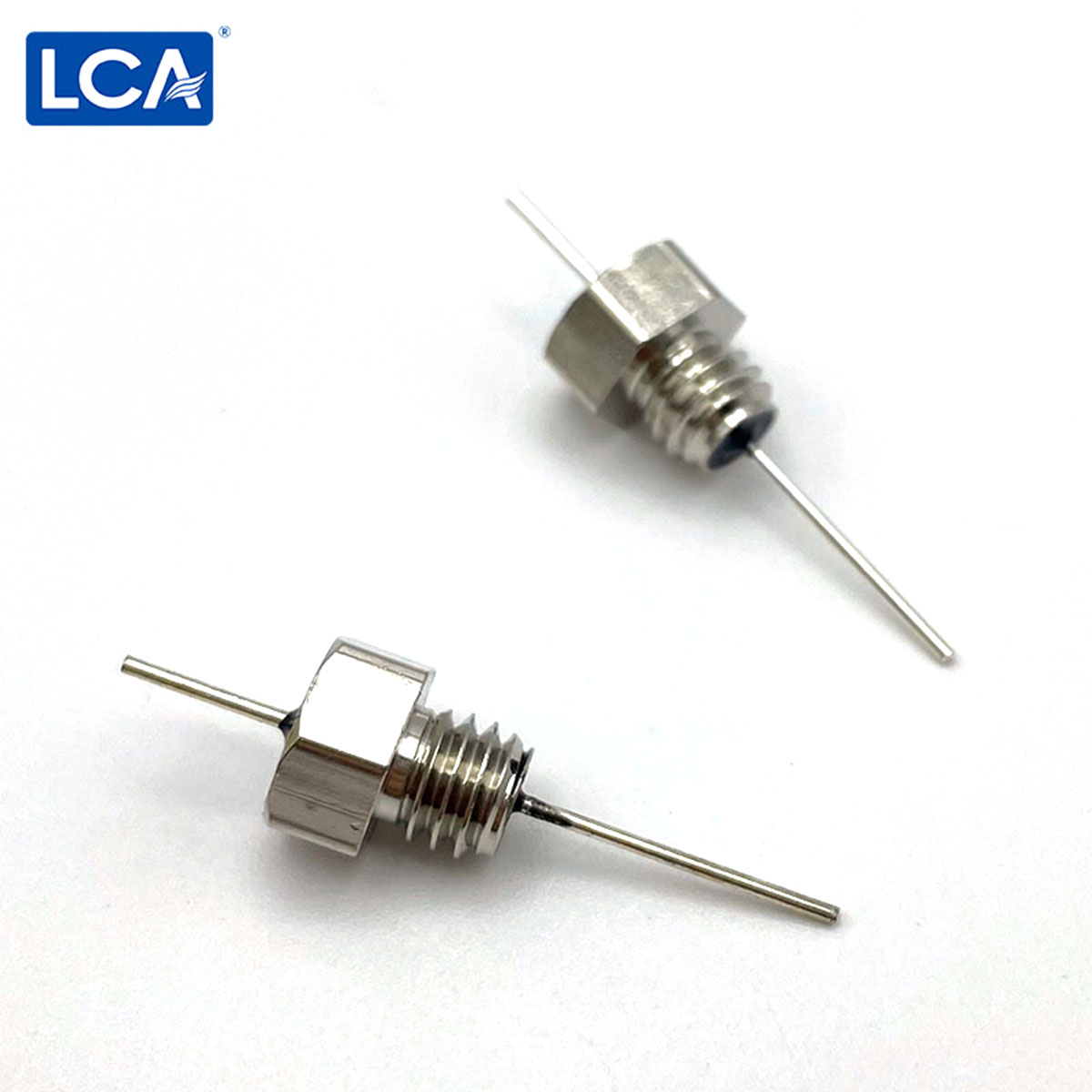

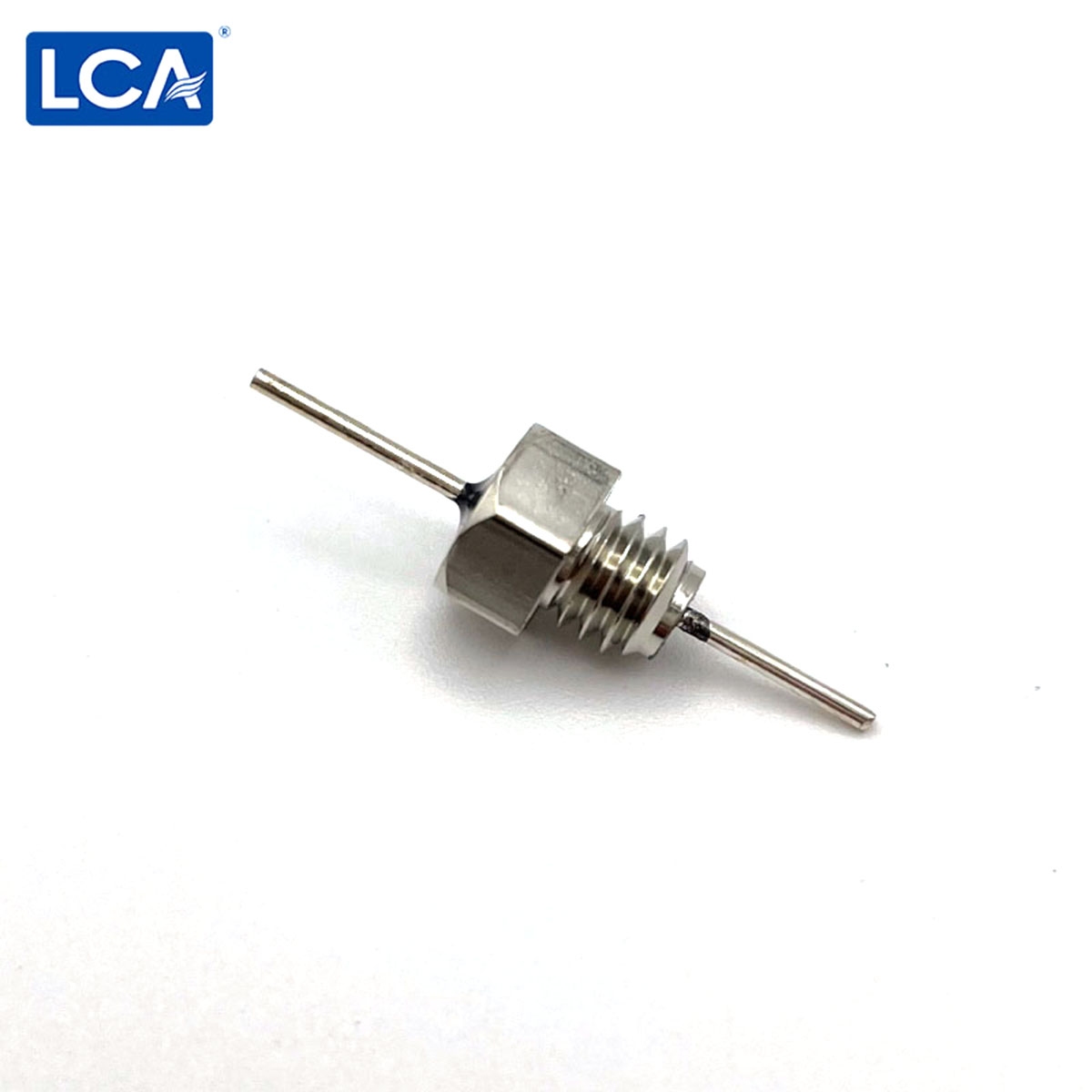

L8060-013AN

In production

The LCA threaded feed-through filter is one of the most comprehensive in the industry. General threaded EMI filters range from M2.5 to M8, with UNC UNF and UNEF alternatives, and offers a wide range of interference suppression solutions.

-
+

Product Parameters

Size

  • Thread
    M6*1.0
  • Hexagonal Diameter (S)
    8MM

Material

  • Dielectric
    Y5V
  • Plate
    Nickel

Specification

  • Capacitance
    5000pF
  • Dissipation Factor
    <3.5%
  • Cap Tolerance
    -20%+80%
  • Rating Voltage
    250VDC
  • D.W.V.
    1500VDC
  • Current(A)
    20
  • I.R.100vdc
    3000MΩ
  • Operating Range
    -25℃+85℃
