Thread Mount Feedthrough Filters

Metric ThreadsImperial Thread

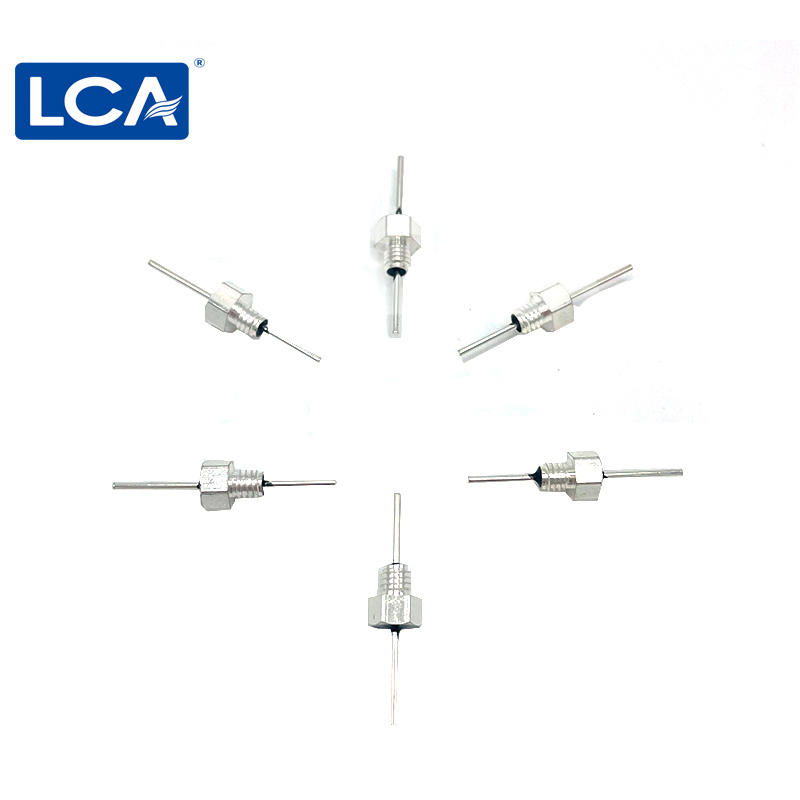

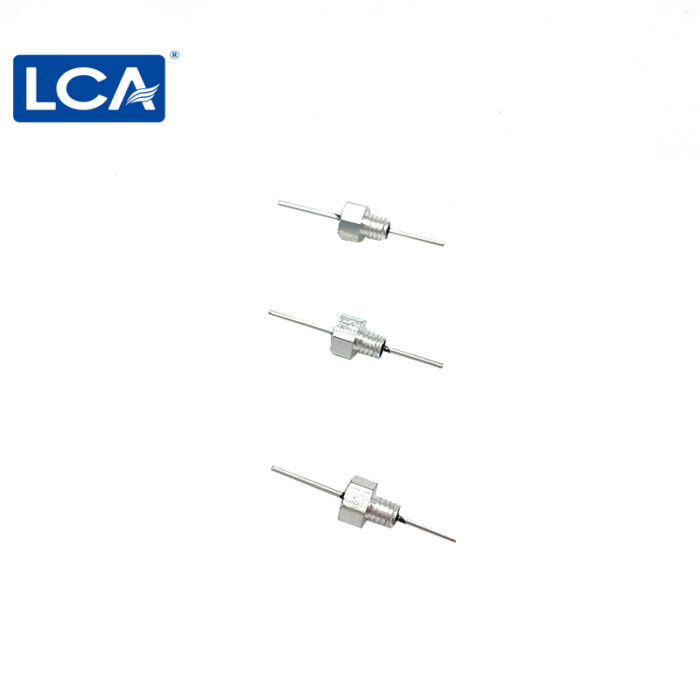

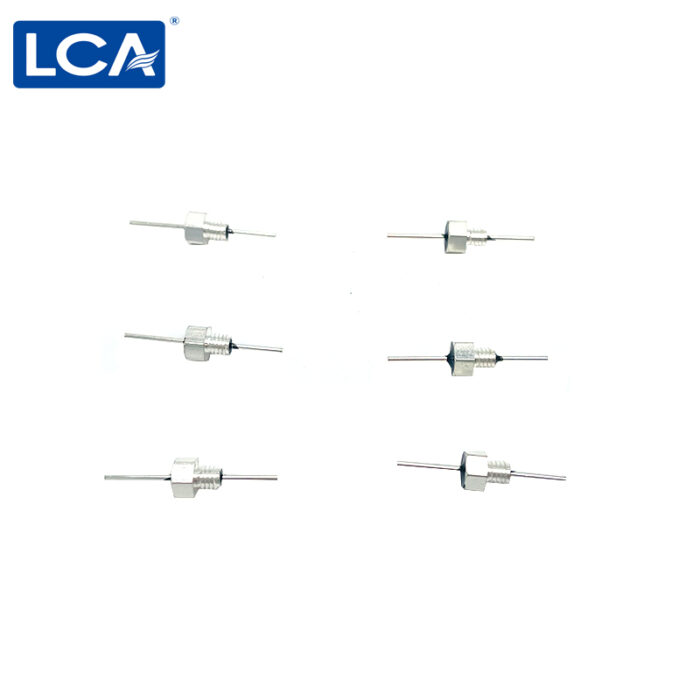

L6040-008N

In production

The LCA® Threaded Feedthrough Capacitor Series responds to EMC protection demands across multiple fields with customized solutions. It offers customizable EMI filters for instrumentation, automotive electronics, and other applications. Based on diverse scenarios, LCA provides tailored EMI solutions and ensures rapid delivery of EMI filters, delivering long-term and precise EMC protection for such equipment.

-
+

Product Parameters

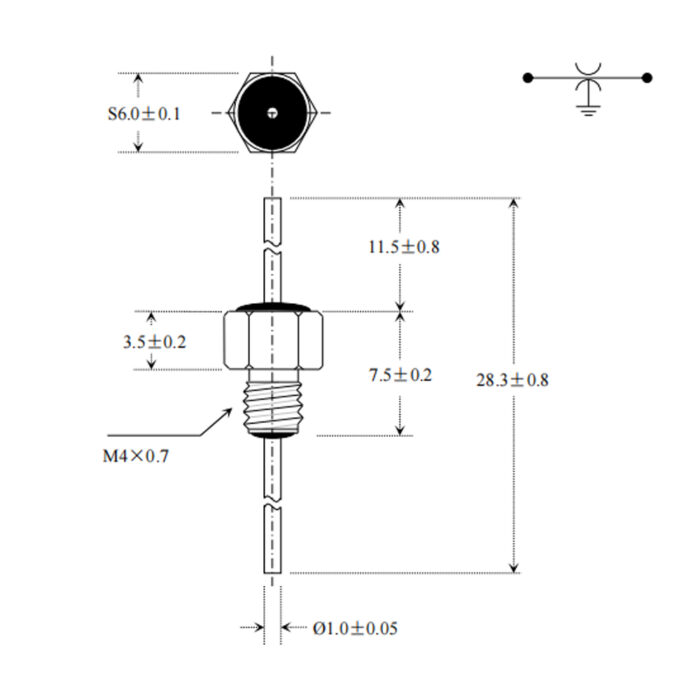

Size

  • Hexagonal Diameter
    6.0mm±0.1
  • Threaded Size
    M4
  • Case Length
    7.5mm±0.2
  • Lead Diameter
    1.0mm±0.05
  • Lead Length
    28.3mm±0.8

Material

  • Dielectric
    X7R
  • Case
    Brass
  • Plating
    Nickel

Specification

  • Capacitance
    0.01uF
  • Cap. Tolerance
    -20%+20%
  • Rated Voltage
    100VDC
  • D.W.V.
    300VDC
  • Rated Current
    10A
  • Circuit
    C
  • Operating Temperature
    -55℃+125℃
  • Sealing
    Resin
  • Terminals Type
    Lead

Special Note:

The LCA® Thread Mount Feedthrough Capacitor Series is primarily available in Metric and Imperial (UNC/UNF) dimensions.If special size and parameter requirements are needed, LCA supports product customization.
