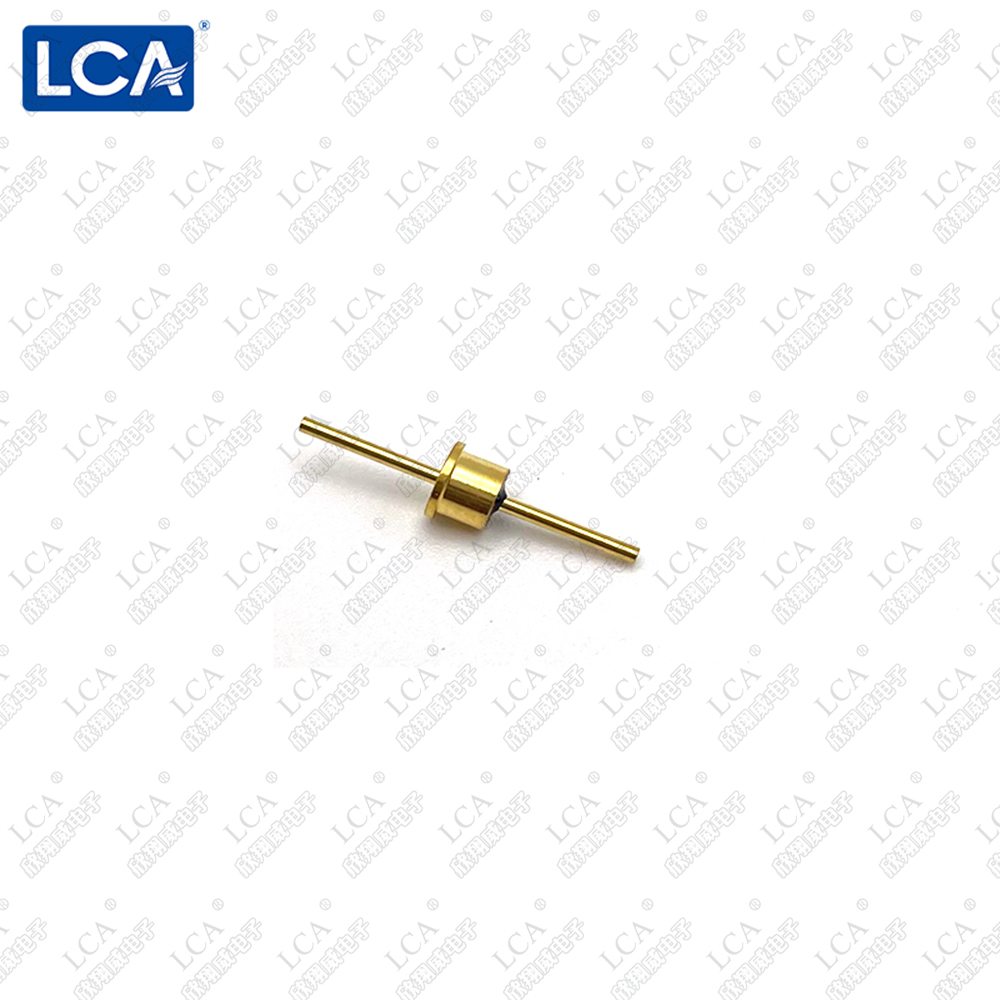

HB4033-041
- Features
- Capacitance :0
- Dissipation Factor :＜3.5%
- Capacitance Tolerance :0-5PF
- Temp Characteristics :NPO
- Rating Voltage :200V
- D.W.V. :500V
- Current :10A
- I.R. 100vdc :3000MΩ
- Operating Range :-55℃+125℃
- The model display is not complete, please contact me
Description

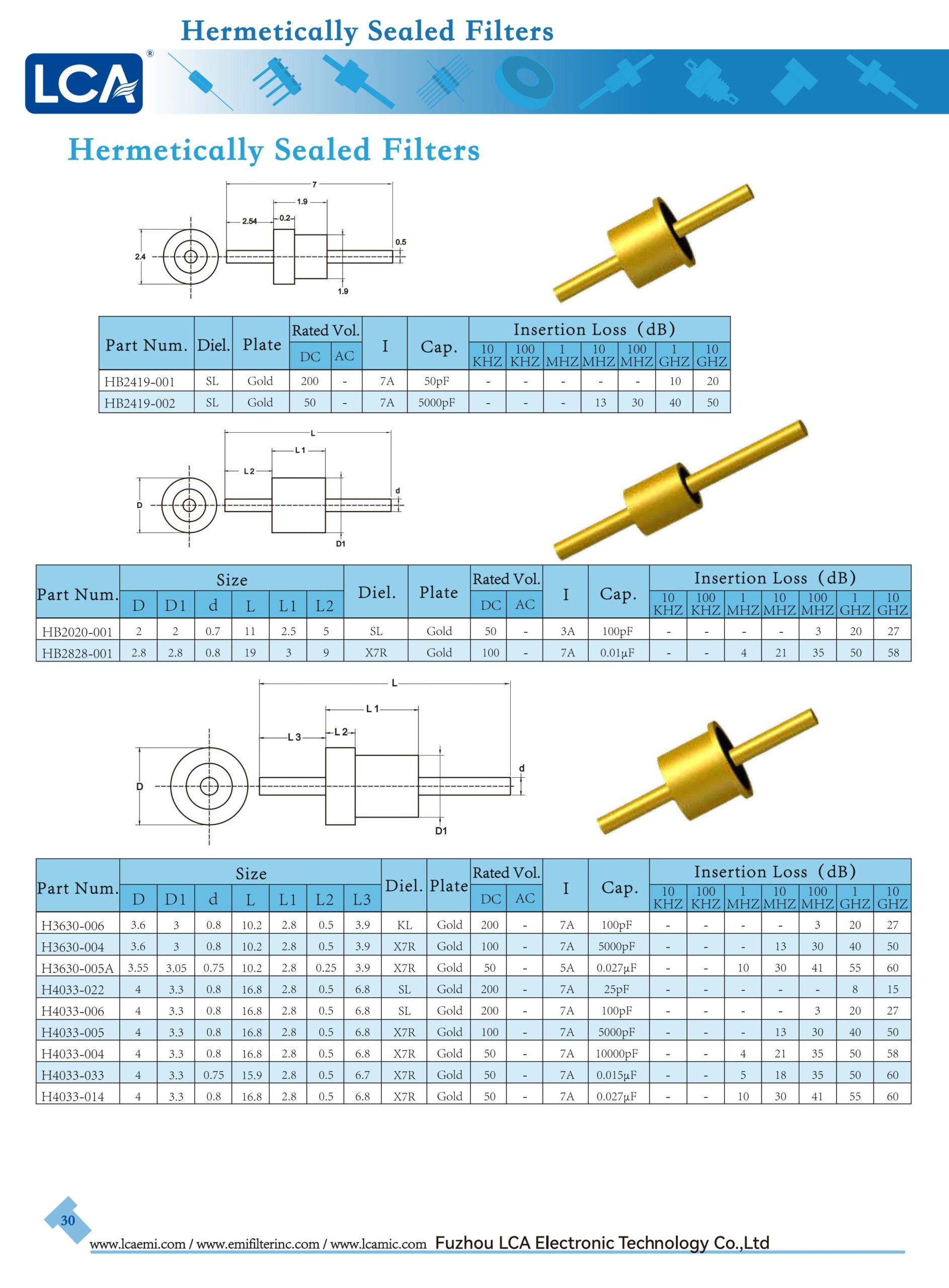

| Part Number | Plate | Diel | Current(A) | Voltage | Capacitance |

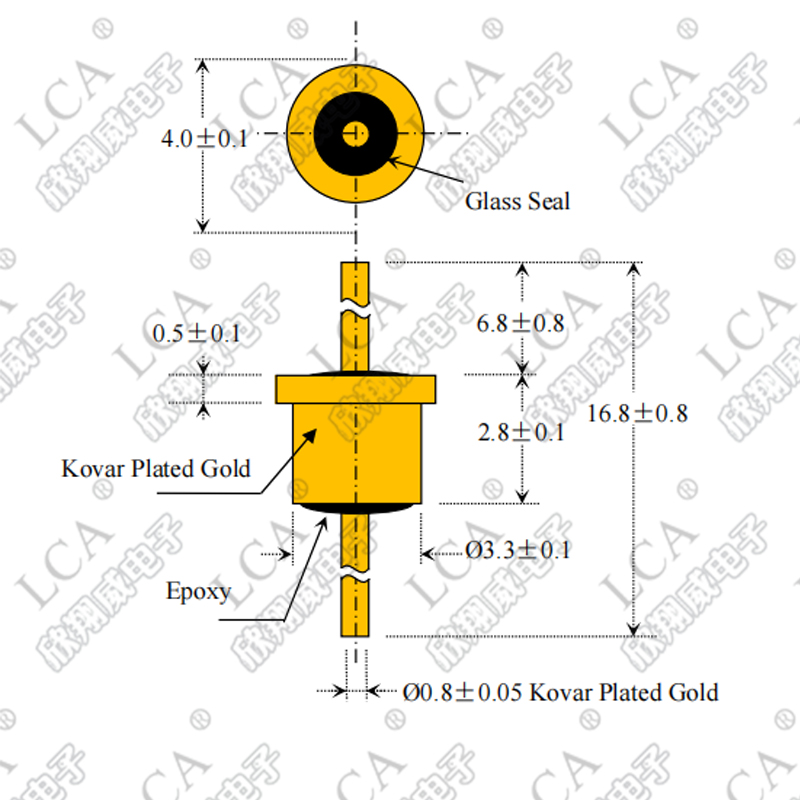

| H4033-001A | Gold | X7R | 5A | 200V | 1000pF |
| H4033-031A | Gold | X7R | 5A | 50V | 0.02uF |
| HB4033-041 | Gold | NPO | 10A | 200V | 0pF |

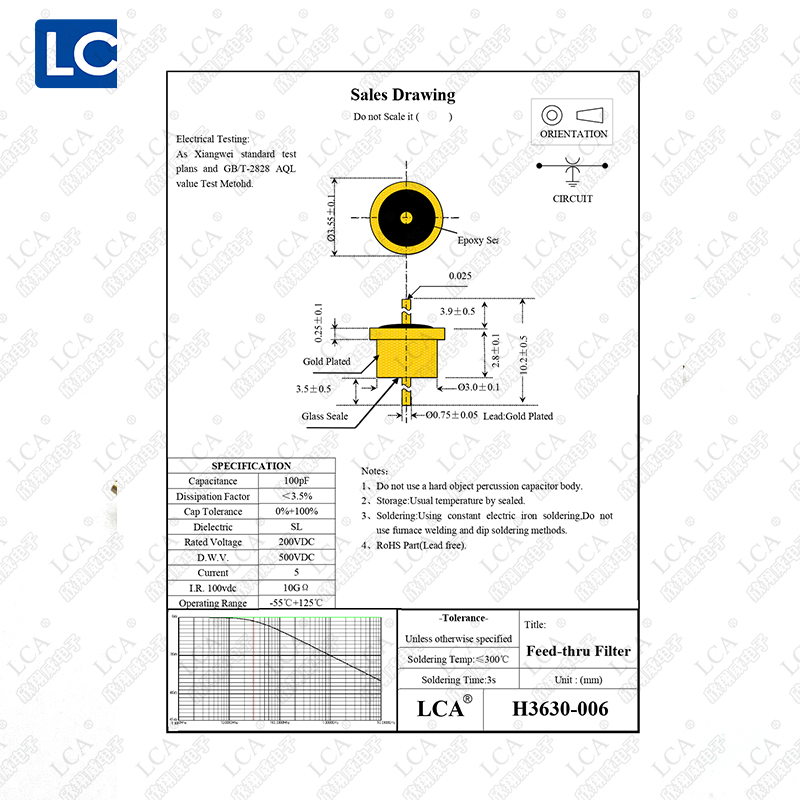

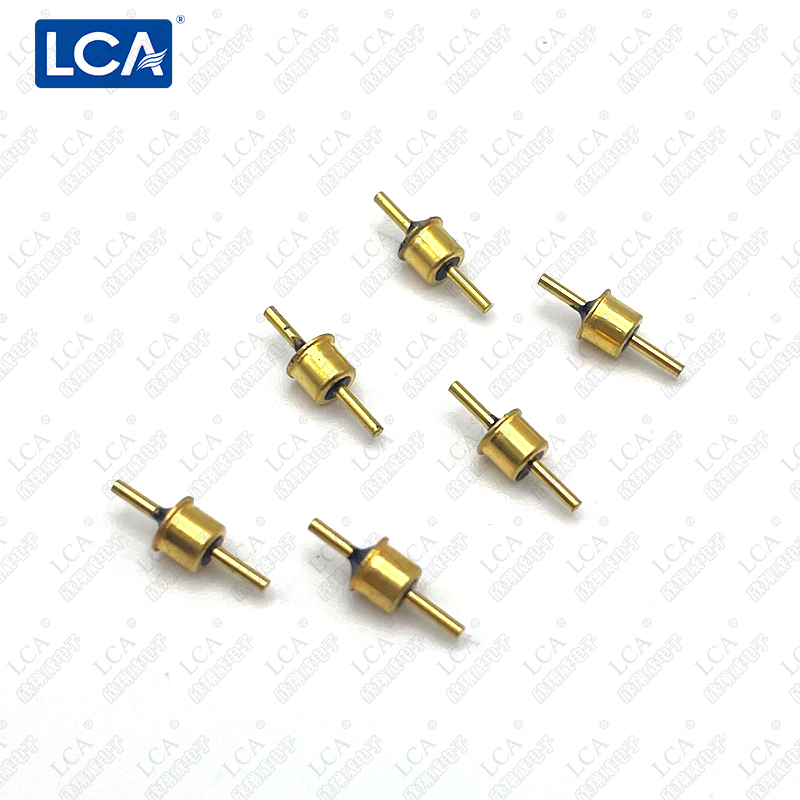

| H3630-006 | Gold | SL | 5A | 200V | 100pF |
| H3630-004A | Gold | X7R | 5A | 100V | 5000pF |
| H4033-006 | Gold | X7R | 7A | 200V | 100pF |
| H4033-030 | Gold | SL | 7A | 200V | 1000pF |
| H4033-001A | Gold | X7R | 7A | 20V | 1000pF |
| H4033-005 | Gold | X7R | 7A | 20V | 5000pF |
| H4033-004 | Gold | X7R | 10A | 50V | 0.01uF |
| | | | | |
| Q4033-006 | Gold | SL | 5A | 100V | 100pF |
| Q4033-005 | Gold | X7R | 5A | 50V | 0.03uF |
